Top quality 20inch folding fat tire ebike 20x4.0 foldable electric bike

FOB Reference Price:Get Latest Price
$480.00 - $640.00 / Units | 1 Unit/Units different parameters,different prices (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Wattage:
251 - 350w
Voltage:
36V
Power Supply:
Lithium Battery
Motor:
Brushless, 36V 250W (Optional motor :250W.500W.)
Certification:
CE
Frame Material:
Aluminum Alloy
Foldable:
Yes
Max Speed:
<30km/h
Range per Power:
31 - 60 km
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CNEBIKES
Model Number:
Mini Fat boy
Battery:
36V/10Ah Lithium battery
Controller:
Intelligent brushless 36v with sensor(1:1pas)
Charger:
AC 100V-240V,2amps
Charging time:
6-8 hours
Loading:
100kg
Tyre:
20*4.0
Front brake:
V-brake
Product name:
20inch folding fat tire ebike
Wheel Size:
20“
Supply Ability
Supply Ability:
3000 Unit/Units per Month
Packaging & Delivery
Packaging Details
standard export carton package for 20inch folding fat tire ebike 20x4.0 foldable electric bike
Port
shanghai for 20inch folding fat tire ebike 20x4.0 foldable electric bike
Lead Time :
25days after payment for 20inch folding fat tire ebike
Product Description

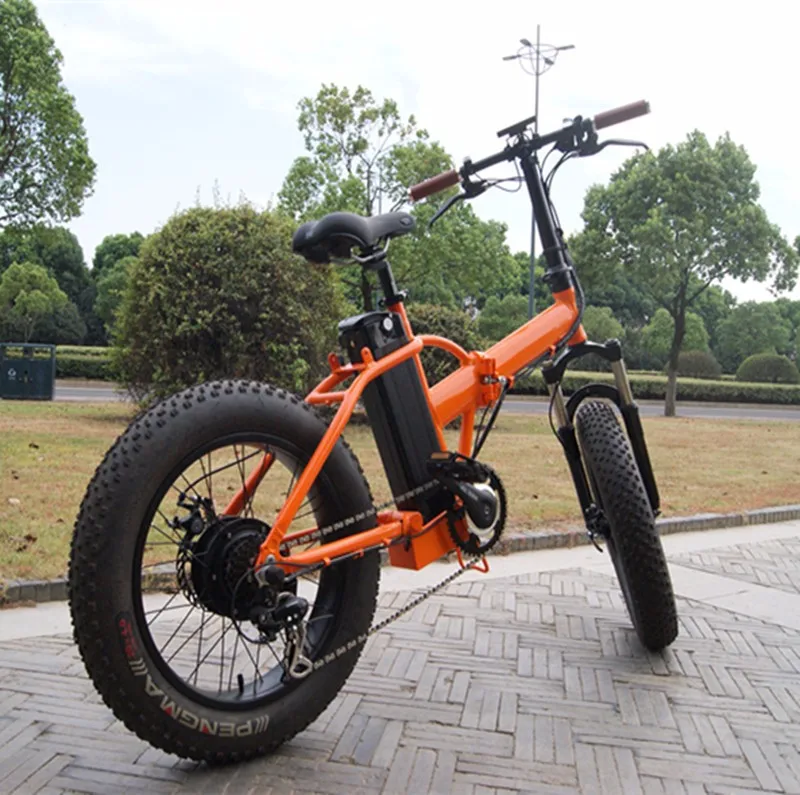

Top quality 20inch folding fat tire ebike 20x4.0 foldable electric bike


Cnebikes fat tire electric folding bike,which is installed alloy lightweight frame.
Match to use a 350w/500w motor and 36v 10.4ah /48v 11.6ah lithium battery, easily can have above 30-40km per hour.
Use 20*4.0 tire,big tire pattern can help you do not caught in snow filed or sand.
Although it have a big tire,but it is very easy to cycling.
LCD display can show you the power,temperature,speed,time,battery status etc, help you comprehensive control of your bicycle.
5 levels PAS, if you are tired to riding , you also can use throttle to drive the e-bikes.

Specification
Model
SR20B
Brand
CNEBIKES
Motor
350W/500W
Derailleur
Shimano TY300
Battery
10.4ah/11.6ah
Shift lever
Shimano TX50-7S
Display
LCD003
Freewheels
Shimano TZ21 14-28T
Controller
1:1 speed System(PAS)
Handlebar
PORMAX, aluminium
Range
35-45km
Frame
Aluminium Alloy 6061-T6
charging voltage
100-240V automatic
Front fork
Suspension
Sensor
Torque & speed
Brakes
F &R: CSTAR ,DISC brake

If you want to know more, please send me an inquiry↓↓↓↓↓↓↓↓

Detailed Image

Motor

electric bicycle has a 500w Watt rear brushless gearless hub motor for power supply. Brushless motor has high reliability, good stability and strong adaptability, simple maintenance and maintenance. Strong power, continuous output. suitable for Euro Market


LCD eBike System

LCD display looks fishion and have more functions.Set relevant parameters, like rim size,speed limited,password.... When you cycling, it also can tell you the speed,time,range,temperature...

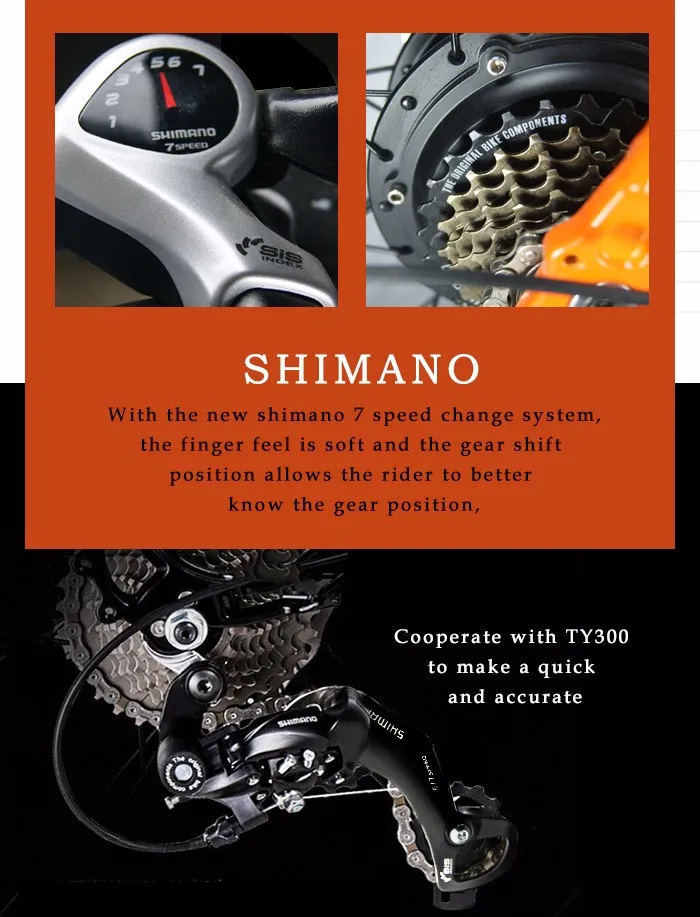

SHIMANO Transmission System

SHIMANO Tourney series 21 speed drivetrain,have variable speed guide,can realize precise and reliable speed change.Easy to change the speed,even long distance cycling,you also will not feel tired.13T guide wheeliIt reduces noise while having a beautiful appearance.

Brake System

Brake use CSTAR "radius" disc brake, good braking effect, Longer use is not easy to reduce brake performance,It's also not easy to lock up, especially in the front wheel,can effect protect your riding safety.

Related Products

If you want to know more, please send me an inquiry↓↓↓↓↓↓↓↓

Company Profile

CNEBIKES Co., Ltd is located in Changzhou city ,Jiangsu ,China.  We are just one hour from Shanghai by high-speed train . It is easy for potential customers to come and have a look at our facility and products.
We manufacture a variety of products . Our products are reliable and durable. We export to Europe, the USA, Canada, Southeast Asia, Australia and many other countries . Our customers have given us high praise for our products and service.

Packing & Delivery
Packing:
Standard export carton packing, with professional foam protection.
Shipping:
For samples, we deliver goods to customer by UPS,FEDEX,DHL,TNT or EMS.

For mass production order, we deliver goods to customer by air or by sea.
FAQ

Q: Is it OK to print my logo on electric bike?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q. How often do I have to charge the batteries?
A:The batteries can be recharged even if they aren't completely empty, so you can recharge your batteries whenever it is convenient for you.

Q. How long does it take to fully charge the batteries?
A.That depends on how full they are. Completely empty batteries will take 4 to 6 hours to charge with a standard charger.

Q: What's your warranty terms?
A: We offer 1 year warranty for whole e bike.

Q: What's the delivery time?
A: It usually takes about 25-40 working days for production based on specifications for your order and quantity.

Q: Do you have the products in stock?
A: Mostly electric bike will be newly produced according to your order including samples.

Q:Can I ride my E-Bike in the rain?
A:Your E-bike is water resistant and can be ridden in an average rainfall. We advise against riding in heavy rain and strongly advise against leaving your E-bike outside while it’s raining.
