Screen update! 36v 250w 350w bafang BBS01 8fun mid drive motor e bike conversion kit for electric bicycle

FOB Reference Price:Get Latest Price
$275.00 - $295.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 7 Negotiable
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Part:
Other
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Bafang/8FUN
Model Number:
BBS01
Product Name:
mid drive motor for electric bike
Nominal Voltage and power:
36V 250W/350W
Bottom Bracket:
68mm/100mm/110mm/120mm
chain wheel type:
44T 46T 48T 52T
Controller:
inside of motor
Design:
brushless
Efficiency:
80%
Display:
DPC-14 color display
Wheel suit:
16''18''20'''24''26''28''700C
cetification:
CE
Supply Ability
Supply Ability:
5000 Unit/Units per Month for bafang BBS01 8fun mid drive motor e bike conversion kits
Packaging & Delivery
Packaging Details
standard export carton package for Screen update! 36v 250w bafang BBS01 8fun mid drive motor e bike conversion kits for electric bicycle
Port
shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

The advantage of this kits:

1.This kits can be installed on standard normal bike frame easily, no need to change the frame.
2.High starting torque, good performance on climbing.
3.Double clutches are used on drive unit, more safety.
4.High efficiency, low consumption, long travel distance.

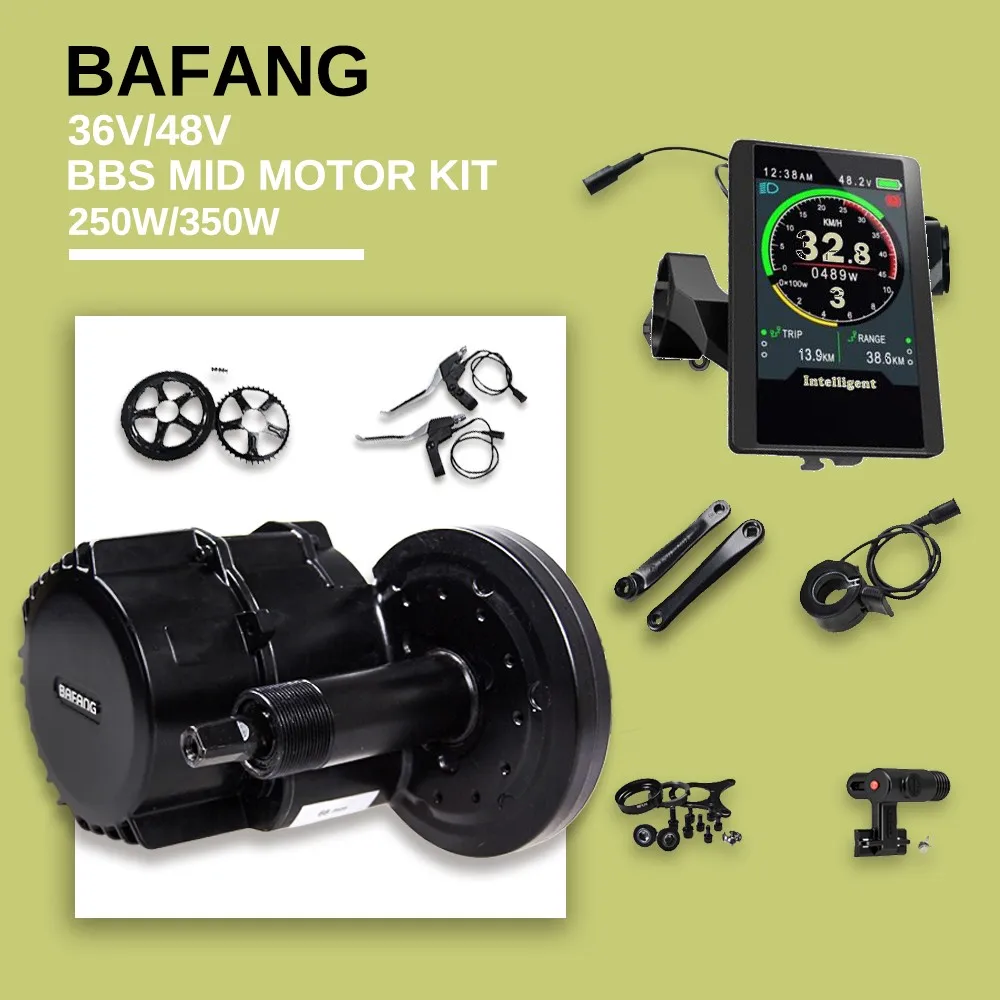

Package List

1x motor unit
1x DPC-14 display
1x thumb throttle
1x speed sensor
1xchain wheel & cover
2x cranks
2x brake levers
1x user manual with accessories parts

Parameter
Screen update! 36v 250w bafang BBS01 8fun mid drive motor e bike conversion kits for electric bicycle
Model
BBS01
Position
Central motor
Power
250w/350w
Voltage
36v
Construction
Geared
RPM
85-78
Max torque
80N.M
Efficiency
80%
Sensor
Speed sensor
IP code
IP 65
Bottom braket
68mm/100mm/110mm/120mm
Chain wheel
44T/46T/48T/52T
Detailed Images

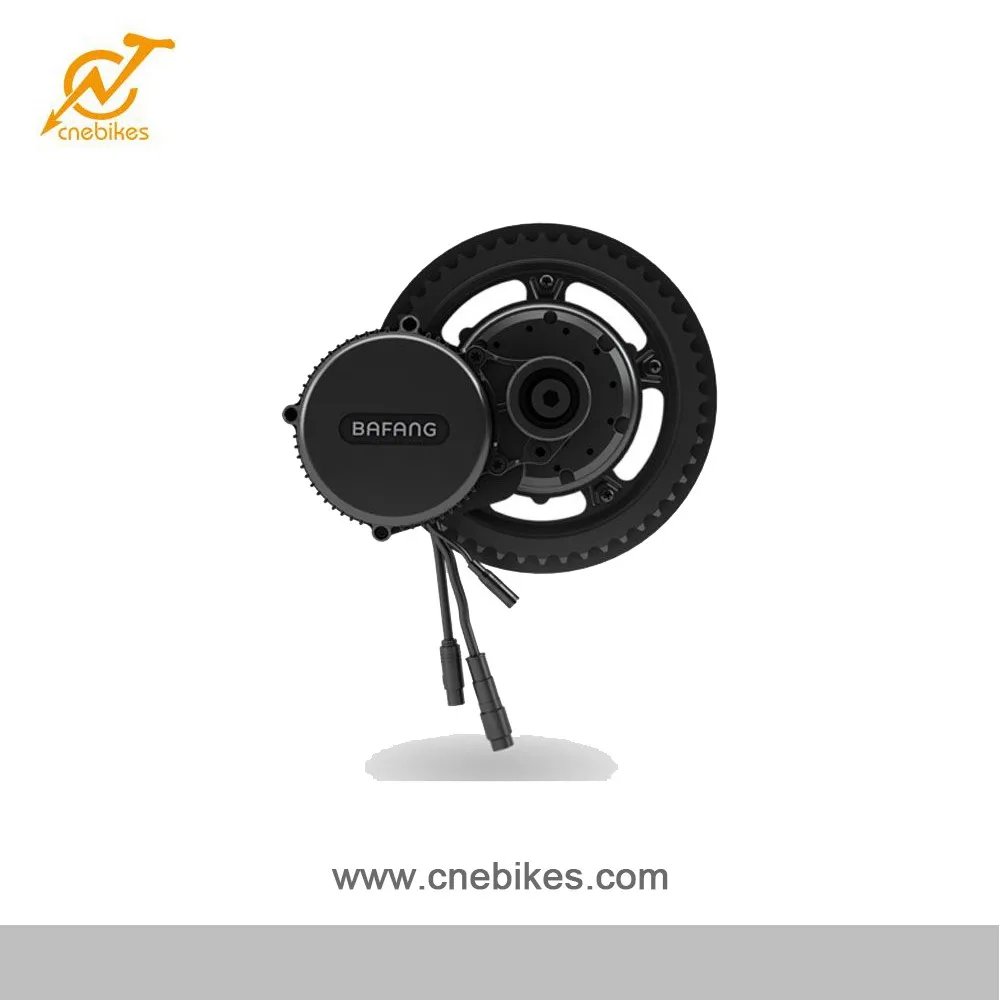

36V 250W/350W mid motor


With an integrated speed sensor, this BBS01  mid drive motor, which is compatible with a 68mm, 100mm, 110mm and 120mm bottom bracket, has a rated power of 250W/350W, a reduction ratio of 1: 21.9 and a maximum torque of 80 N.m

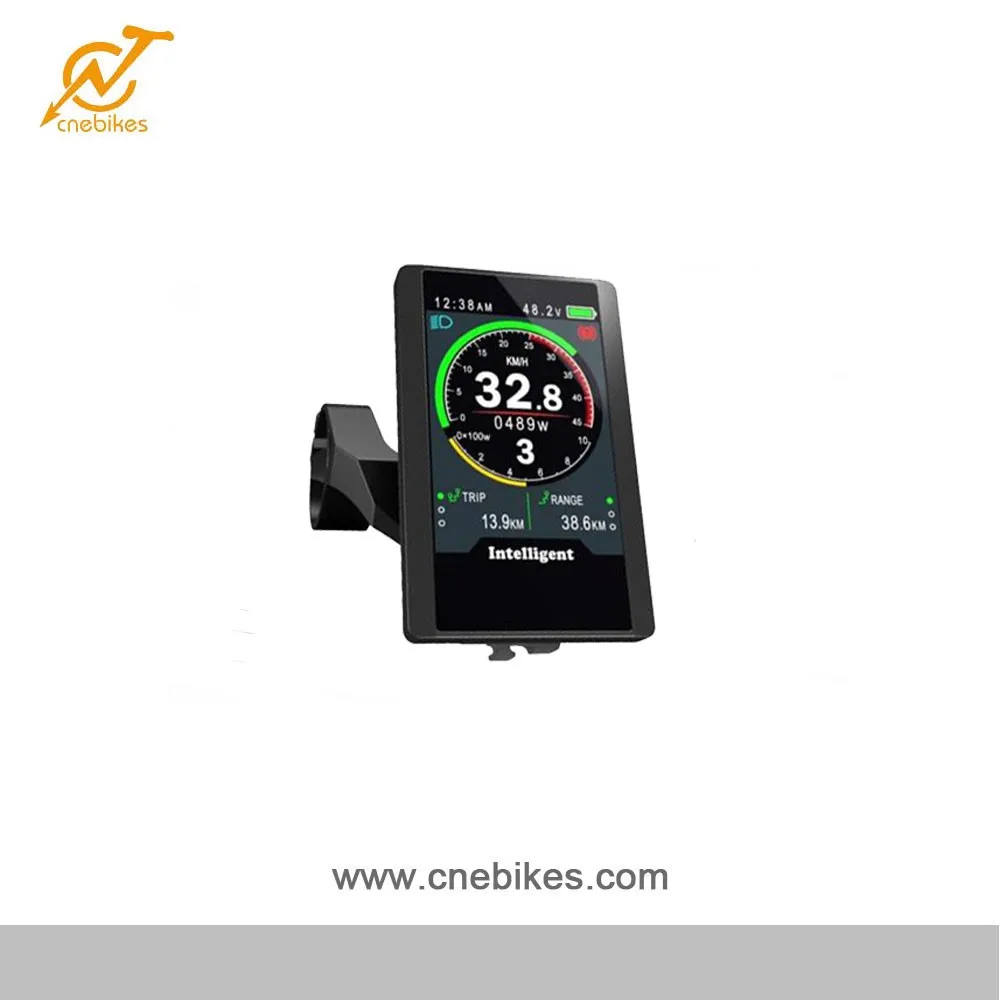

Display


DPC-14 colorful display for choice can show temperature, speed, motor power.......



Other parts

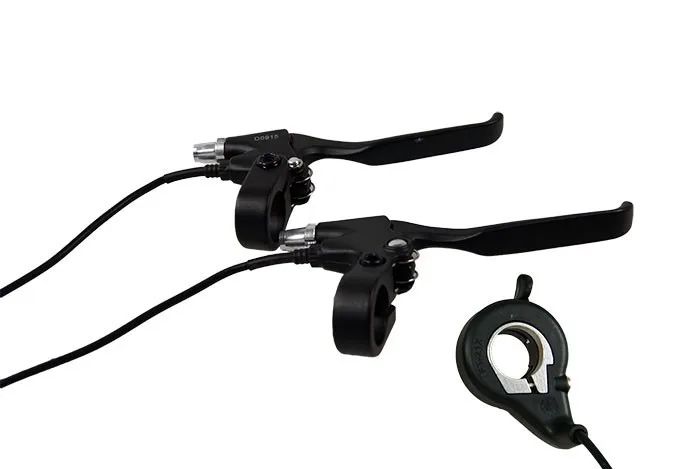

Brake levers and thumb throttle

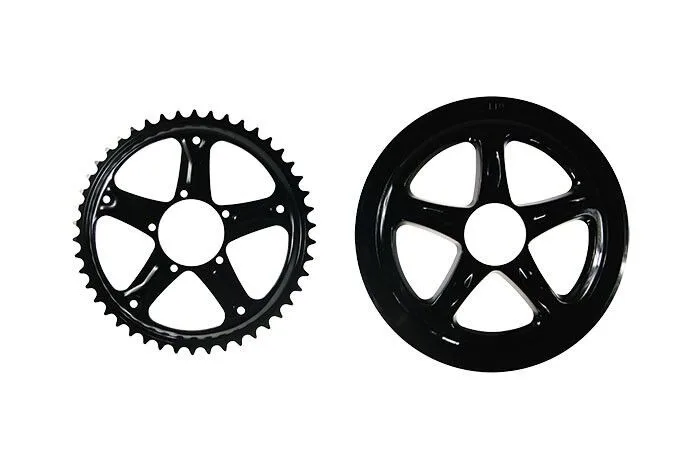

Chain wheel& cover

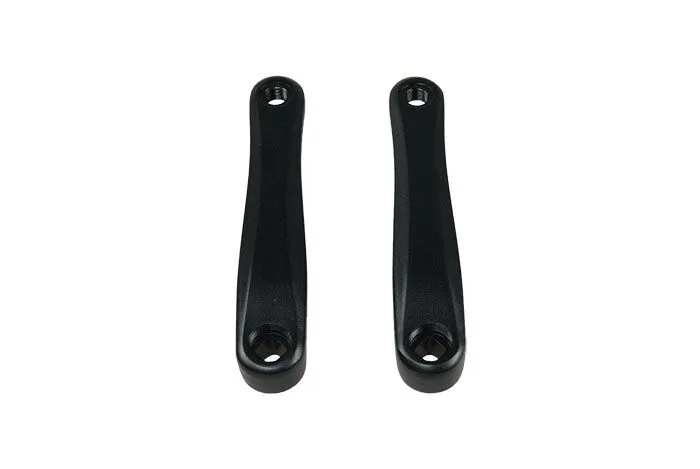

Cranks

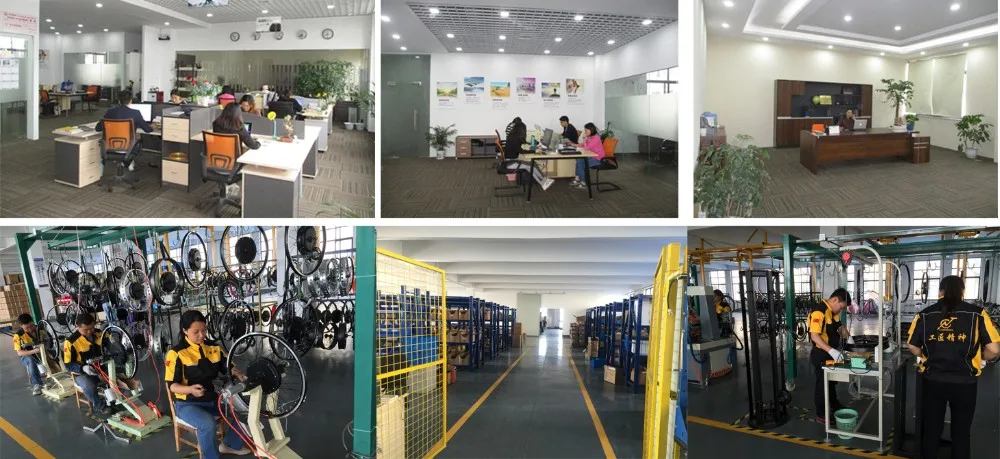

Our Company

What can we provide ?


1.E-bike: city e-bike, folding e-bike,fat tyre e-bike, mountain e-bike, city e-bike

2. Electric car: Two seater mini electric car.
3.Wheelchair electric handcycle
4.Hub motor kit: geared hub motor kit , gearless hub motor kit, geared hub motor waterproof kit.
5.Fat tyre motor kit:20*4.0 fat tyre motor kit, 26*4.0 fat tyre motor kit, BAFANG G06 fat tyre motor kit
6.Super power hub motor kit:1500w, 3000w, 5000w
7.Mid motor kit: TSDZ2, BAFANG MM G31, BAFANG MM G32,BAFANG MM G33
8.Li-ion Battery: Down tube type battery, Rear rack type battery,Naked package type battery

Any questions, pls ask send me an inquiry!

CNEBIKES Co., Ltd
We manufacture a variety of products such as, electric bike conversion kits, mountain and city electric bikes, fat tyre electric bikes and relative parts for electric bicycles. Our factory is certified by CE, SGS, CCC, EEC and other related certifications. Our products are reliable and durable. We export to Europe, the USA, Canada, Southeast Asia, Australia and many other countries . Our customers have given us high praise for our products and service. The business philosophy at our company is that the customers are first, employees are second and shareholders are last.
FAQ


Q.How many sets are available for bafang mid motor kit wholesale price ?
A. more than 5 sets , we can offer the wholesale price for MMG31,MMG32, MMG33 .

Q:Do you have stock?
A:We always keep some ready stock for this mid motor kits,Please let me know what quantity and which model you want,thus I could check properly for you.

Q:What type of connector do you use for the battery?
A:Anderson connector.

Q: Can I have a user manual of Bafang mid motor kits?
A: Yes, we will send you a user manual with the goods.

Q:Does it come with the controller?
A: Everything you need (except for battery) comes with this kit. Depending on how you are going to use it may require splicing some wires, but that's about all.

Q: What should I do when an error code is displayed?
A: Please check the code list in first,something errors can be solved simply. Please contact our service technician if the user cannot remove the error.


If you want to know more, please send me an inquiry.
