Bafang/8fun Mid Drive Motor Kits bbs01bbs02 500w/750w With Lithium Battery Made In China

FOB Reference Price:Get Latest Price
US $280-369 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Part:
bottom cracket
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
bafang
Model Number:
MM G310
Product name:
High Quality 48v 750w Mid Drive Motor Kits
Nominal Voltag:
36v/48V
Rated Power:
500W/750w
Construction:
Geared Motor
Max Torque:
100-160 N.m
Efficiency:
80 %
Sensor:
Speed Sensor Hall Sensor
Bottom Bracket:
68mm/100mm
Chain Wheel:
44T/46T/48T/52T
IP-code:
IP 65
SupplyAbility
SupplyAbility:
2000 Set/Sets per Month for High Quality Bafang Bbs01
Packaging & Delivery
Packaging Details
standard export carton package for High Quality Bafang Bbs01
Port
Shanghai
Lead Time :
within 15 days after payment for High Quality Bafang Bbs01
Product Description

Bafang/8fun Mid Drive Motor Kits bbs02 48v 750w With Lithium Battery Made In China

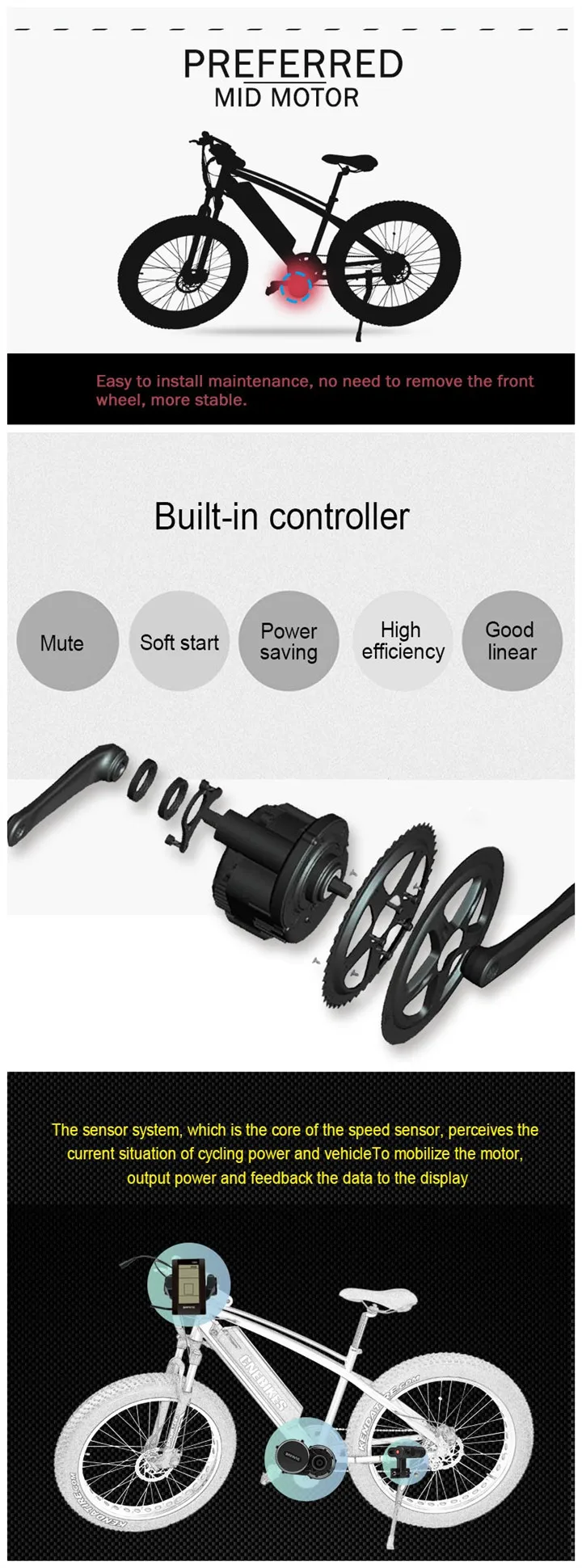

MID drives are the holy grail power-providers for electric bikes. If you want to know how you can spend a lot of money on an electric bike and get the ultimate in efficiency and performance this is a good start. MID drives are not the easiest or the cheapest electric bikes to build, but can be the cream of the crop once you are out riding, especially off road, especially climbing hills or even mountains.

Mid motor compare with hub motor:

When compared to a hub motor, a MID drive is an elegant solution. This is because MID drives allow you to use the bike's transmission as the motor's gears, so the electric motor can run in its optimum RPM range. This translates to a happier more efficient motor and a lighter better balanced e-bike. Why a lighter bike? When going through the gears, you dont need as heavy a motor to propel you up hills without smoking, and you dont need as much battery because a MID drive is considerably more efficient than a hub motor especially when climbing.

MID drives are the holy grail power-providers for electric bikes. If you want to know how you can spend a lot of money on an electric bike and get the ultimate in efficiency and performance this is a good start. MID drives are not the easiest or the cheapest electric bikes to build, but can be the cream of the crop once you are out riding, especially off road, especially climbing hills or even mountains.

Easy Assemble bbs02 750w

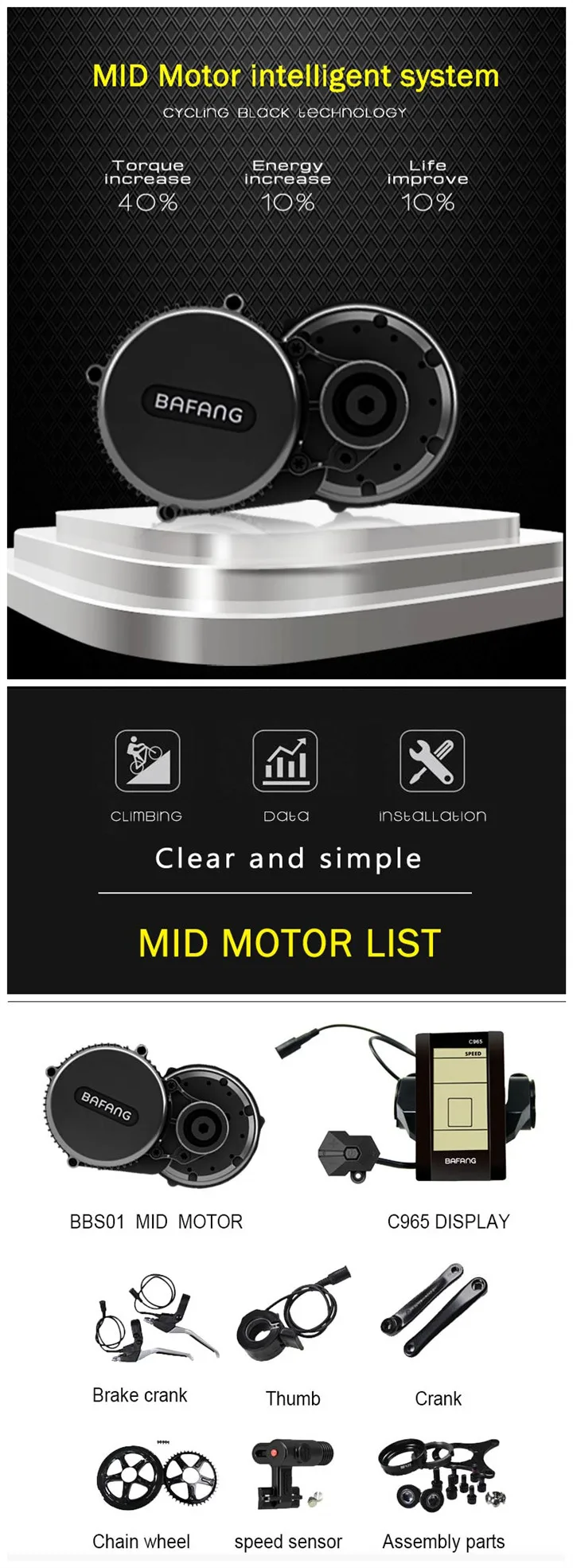

 Package content:

Bafang BBS02 motor kit :
MOTOR:500W/750W
BB:68mm,100mm,for choosing
1×Mid motor

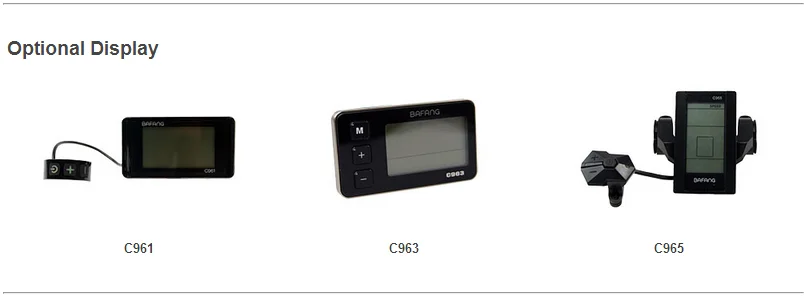

1×C965 /C961 display
1×Thumb throttle
1×Speed sensor
1×Chain wheel/Chain cover
2×Crank
2×Brake levers
Warranty is 2 years for motor,and half year for parts.


Easy Assemble bbs02 750w

The advantage of this kits:

1.This kits can be installed on standard normal bike frame easily,no need to change the frame.
2.High starting torque, good performance on climbing.
3.Double clutch is used on drive unit,more safety.
4.High efficiency, low consumption,long travel distance.

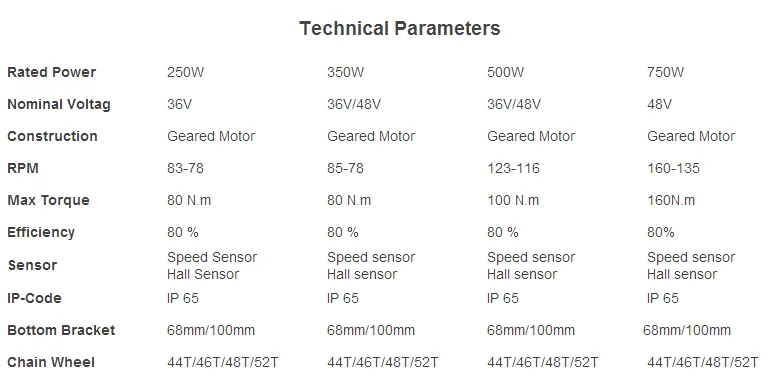

Technical ParametersEasy Assemble bbs02 750w









Please feel free to contact if the kit you're searching for is not listed , or any solution you want!

Related Products

bafang nylon gear.png

Bafang nylon gear





Bafang LH thumb throttle.png

Bafang thumb throttle for left hand

Bafang chain ring 46T.png





Bafang 46T chain ring



Packaging & Shipping

Packaging Details: standard package of electric bicycle
Delivery Time: 7-15days after payment


Our Services

1. Free consulting by phone or email to help you make the right decision and choice of products .
2. We have professionals who can suggest the right products for your needs.
3. Keep in good contact with our clients before and after sales.
5. We provide a two year guarantee for our motors, a one year guarantee for our lithium batteries and six months for our other products.
6. Follow-up contact to solicit opinions and ideas to help make improvements to our products.
7. OEM Manufacturing & customized service : Product, Package... Tell us your needs,then we can do some reasonable changes of the ebikes or the package for you.

Company Information

We at CNEBIKES are a dedicated team with many years of combined experiences in the field of electric bicycles. Our product line covers various electric bikes, electric bike conversion kits, and relative parts for electric bicycles.
We are located in Changzhou city ,Jiangsu ,China.  We are just one hour from Shanghai by high-speed train .
Our factory is certified by CE, SGS, CCC, EEC and other related certifications. Our products are reliable and durable. We export to Europe, the USA, Canada, Southeast Asia, Australia and many other countries . At CNEBIKES we always pay close attention to good customerservice and a logical service._6N$6CGI]{}U`PQH9$QLYZU_.jpg

FAQ

Q: What is the electric bike conversion kit?
A: The kit is designed to transform your standard bicycle(manual pedal power)to an electric-powered by a motor and battery pack.



Q: Will the conversion kit fit my bicycle?
A: The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.



Q: If my bicycle meet your standard, how can I choose to install front wheel or rear wheel motor?
A: A front hub kit is normally much easier to install than a rear wheel kit since you don't have to worry about gearing or derailers. When riding, the rider can easily see the front wheel and respond quickly to problems such as wheel spinning.
Rear wheel drive has the advantage of better traction which is great for hills and inclines. And because the rear frame dropouts are normally stronger than the front fork dropouts, a rear wheel can handle more torque and increased power.

Q: How fast will it go?
A: The speed would be decided by the motor power, controller and battery spec. According to different countries rules, we provide 25km/h for EU and AU market, provide 30km/h for other market.



Q: How far can I go on one charge?
This varies depending on usage, your specification will affect the your battery performance and life. And mostly of the battery have a cycle life of more than 700charges.



Q: Do I have to pedal to assist the motor?
A: There are two kinds of modes available, throttle controller and pedal assist.
Throttle controller means you use a throttle to control power and speed. To get started, simply twist the throttle to accelerate and hold it to maintain speed.
Pedal assist means once you start pedaling, a torque sensor picks up your movement and power integrates seamlessly while you ride. Just pedal and go. Once you use the brakes or quit pedaling, the power is deactivated and you need to pedal again (lightly) to re-activate pedal assistance.



Q: How long does it take to recharge the battery?
A: usually it takes 4—6 hours.



Q. When should I recharge batteries?
A. The battery can be charged after every ride. We do recommend that every 20th charge that you run the battery flat and give it a full charge.



Q: How should I store my battery?
A: Store in cool dry place, you should fully charge your battery before storing it.



Q: How can I get the best battery performance and range?
A: Pedal while the motor is on, start the motor after the bike is moving, use the motor mainly to climb hills, and don’t use the motor while you are going downhill.
