36v 350w TSDZ2 electric mountain bike beach cruiser mid motor kit with coaster brake

FOB Reference Price:Get Latest Price
US $310-339 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
3000 Set/Sets per Month for e bike conversion kit
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Voltage:
36V
Design:
Brushless
Wattage:
301 - 400w
Product name:
e bike conversion kit
Motor:
36v 350w mid crank motor
Max torque:
80N.m
Sensor:
torque sensor, hall sensor, speed sensor
Efficiency:
85%
Bottom branket:
68mm
Chain wheel:
42T
Control:
Internal controller
Display:
VLCD5
Coaster brake:
optional
Packaging & Delivery
Packaging Details
standard package for export e bike conversion kit
Delivery Time
7-15 days after payment for e bike conversion kit

36v 350w TSDZ2 electric mountain bike beach cruiser mid motor kit with coaster brake

Product Description

TSDZ2 Mid Motor Kit

This TSDZ2 mid-drive motor, which is compatible with a 68mm bottom bracket, has a rated power of 250W and 350W, a maximum torque of 80 N.m, a torque sensor and speed sensor,will provide the rider with great explosive force when starting the system. Highly strong and efficient, this TSDZ2 mid motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes.

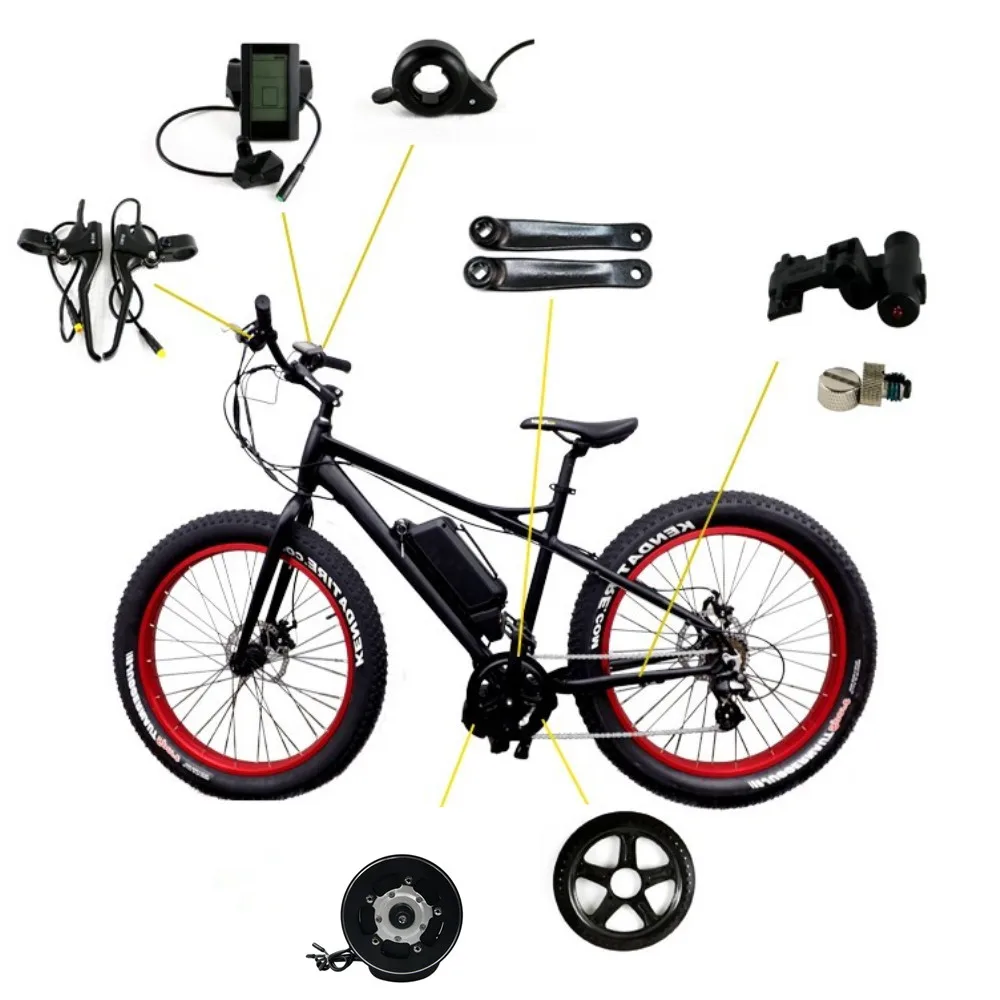

Kit includes:

1× mid motor(torque sensor)

1× VLCD5 display

1× speed sensor

1× chain wheel/chain cover

2× crank

1× thumb throttle(optional)

2× brake levers(optional)



Specifications:

Rated Power350W
Nominal Voltage36V
ConstructionGeared Motor
Power assist ratio36%-300%
Max torque80N.m
SensorSpeed Sensor;Hall Sensor
Torque Sensor
IP-CodeIP54
Bottom Bracket 68mm
Chain Wheel42T
Effect show



Details:



Click for more

Our production line includes:

1.E-bike: city e-bike, folding e-bike, fat tyre e-bike,mountain e-bike
2.Wheelchair electric handcycle

3.Hub motor kit: geared hub motor kit , gearless hub motor kit.
4.Fat tyre motor kit:20*4.0 fat tyre motor kit, 26*4.0 fat tyre motor kit, BAFANG G06 fat tyre motor kit
5.Super power hub motor kit:1500w,3000w,5000w
6.Mid motor kit: TSDZ2, BAFANG MM G34(BBS01/BBS02), BAFANG MM G32(BBS03/BBSHD),BAFANG MM G33(MAX), Bafang G510
7.Li-ion Battery: Down tube type battery, Rear rack type battery, Frog type battery, Naked package type battery.

8. Electric car: Two seater mini electric car.

9. Electric scooter: E-scooter, electric skateboard.

Packaging & Shipping

 package: standard package for export

shipping: 7-15 days after payment

Company Information

We at CNEBIKES are a dedicated team with many years of combined experiences in the field of electric bicycles. Our product line covers various electric bikes, electric bike conversion kits, and relative parts for electric bicycles.
We are located in Changzhou city ,Jiangsu ,China.  We are just one hour from Shanghai by high-speed train .
Our factory is certified by CE, SGS, CCC, EEC and other related certifications. Our products are reliable and durable. We export to Europe, the USA, Canada, Southeast Asia, Australia and many other countries . At CNEBIKES we always pay close attention to good customerservice and a logical service.



FAQ

Q: What is the electric bike conversion kit?
A: The kit is designed to transform your standard bicycle(manual pedal power)to an electric-powered by a motor and battery pack.



Q: Will the conversion kit fit my bicycle?
A: The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.



Q: If my bicycle meet your standard, how can I choose to install front wheel or rear wheel motor?
A: A front hub kit is normally much easier to install than a rear wheel kit since you don't have to worry about gearing or derailers. When riding, the rider can easily see the front wheel and respond quickly to problems such as wheel spinning.
Rear wheel drive has the advantage of better traction which is great for hills and inclines. And because the rear frame dropouts are normally stronger than the front fork dropouts, a rear wheel can handle more torque and increased power.

Q: How fast will it go?
A: The speed would be decided by the motor power, controller and battery spec. According to different countries rules, we provide 25km/h for EU and AU market, provide 30km/h for other market.



Q: How far can I go on one charge?
This varies depending on usage, your specification will affect the your battery performance and life. And mostly of the battery have a cycle life of more than 700charges.



Q: Do I have to pedal to assist the motor?
A: There are two kinds of modes available, throttle controller and pedal assist.
Throttle controller means you use a throttle to control power and speed. To get started, simply twist the throttle to accelerate and hold it to maintain speed.
Pedal assist means once you start pedaling, a torque sensor picks up your movement and power integrates seamlessly while you ride. Just pedal and go. Once you use the brakes or quit pedaling, the power is deactivated and you need to pedal again (lightly) to re-activate pedal assistance.



Q: How long does it take to recharge the battery?
A: usually it takes 4—6 hours.



Q. When should I recharge batteries?
A. The battery can be charged after every ride. We do recommend that every 20th charge that you run the battery flat and give it a full charge.



Q: How should I store my battery?
A: Store in cool dry place, you should fully charge your battery before storing it.



Q: How can I get the best battery performance and range?
A: Pedal while the motor is on, start the motor after the bike is moving, use the motor mainly to climb hills, and don’t use the motor while you are going downhill.
